CoreStation
INTELLIGENT BIOMETRIC CONTROLLER
Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled security over a centralized access control system. Designed to accommodate enterprise-level systems, the CoreStation can store up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec. With its high-performance, biometric readiness, Ethernet communication, CoreStation is also capable of offering the full features of the BioStar 2 platform.
Features
Centralized Biometric Access Control
Centralized storage for user and access control data including fingerprint credentials
Complete controller functionalities with fingerprint matching
Multi-port interface for fingerprint /RF readers
Supports locks, sensors, RTE, and alarms
Enterprise-level Performance
Improved Security
- Centralized, secure storage of biometric and group access data
- No Ethernet connection to the edge devices
- No data stored on the edge devices
- Secure communication via TLS 1.2
- AES-256 encryption
System Flexibility and Scalability
- Compatible with OSDP 2.0
- Elevator control with OM-120
- Supports up to 132 access points with DM-20 and Secure I/O 2
(132 x Wiegand readers/64 x RS-485 readers) - 3rd party Wiegand reader
- 4ch onboard reader control
(Wiegand, RS-485, relays, inputs, outputs, power out, AUX) - Leverages existing wiring
Simultaneous matching speed up to 8 devices in 1 second
Configuration
Specification
| Model Name | CS-40 | |
| Capacity (Fingerprint) | Users (1:1)* Based on one finger enrollment per user | 500000 |
| Users (1:N)* Based on one finger enrollment per user | 100000 | |
| Max. Finger per User | 10 | |
| Text Log | 5000000 | |
| Image Log | Not supported | |
| HW | CPU | 1.4 GHz Octa Core |
| Memory | 8GB Flash + 1GB RAM | |
| LCD Type | Not supported | |
| LED | Multi-color | |
| Sound | Not supported | |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) | |
| Storage Temperature | -40°C ~ 70°C (-104°F ~ 158°F) | |
| Operating Humidity | 0% ~ 80%, non-condensing | |
| Storage Humidity | 0% ~ 95%, non-condensing | |
| Weight | 415 g | |
| Dimension (WxHxD, mm) | 150 x 214 x 21 | |
| Tamper | Optional (ENCR-10) | |
| Certificates | CE, KC, RoHS, REACH, WEEE, UL 294 Compliant | |
| Interface | Wi-Fi | Not supported |
| Ethernet | 10/100 Mbps, auto MDI/MDI-X | |
| RS-485 | 5 ch | |
| Wiegand | 4 ch | |
| Relay | 4 relays | |
| USB | Not supported | |
| SD Card | Not supported | |
| PoE | Not supported | |
| Intercom | Not supported | |
| RS-485 Communication Protocol | OSDP V2 Compliant | |
| Supervised Input | 8 ch(TTL input selectable) | |
| TTL Output | 8 ch | |
| AUX Input | 2 ch(AC POWER FAIL, TAMPER) | |
| Electrical | Power | DC 12 V |
| Connectivity | Max. Slave Devices (RS-485) | Max. 64 devices (Max. 31 devices per port) |
| Max. Wiegand Devices | Max. 132 devices (with DM-20) | |
- Product specifications are subject to change without notice to improve.
1)The number of users registered without any credential data.
2)If a device with a fingerprint sensor is connected as a slave, the slave device can be used for fingerprint authentication.
3)FaceStation 2 and FaceLite are available only.
Peripheral Device

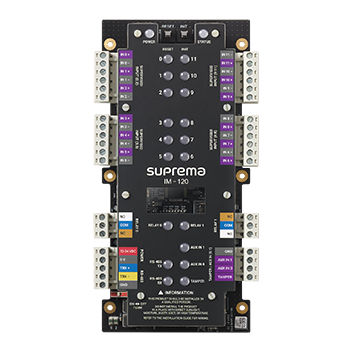

Multiple Input Extension Module
Input Module

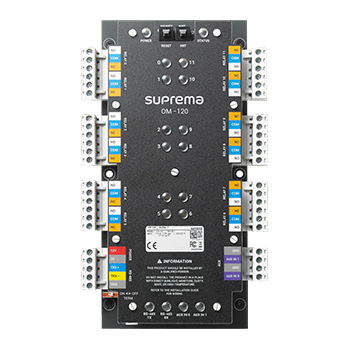

Multiple Output Extension Module
Output Module

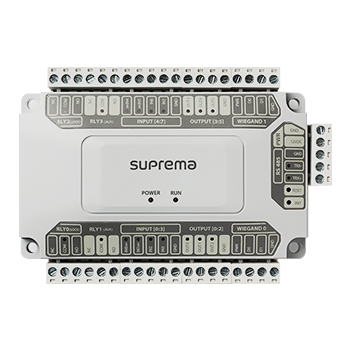

Secure Multi Door I/O Module
Door Module

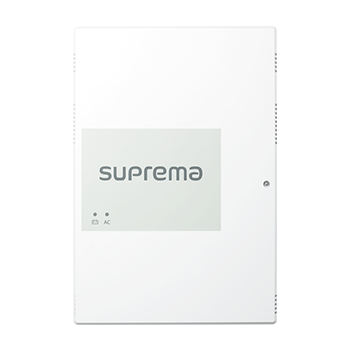

Enclosure for CoreStation
Enclosure

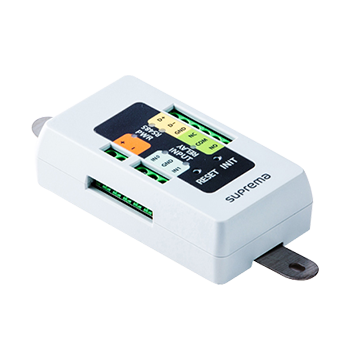

Compact Secure Single Door I/O Module
Secure Module
