X-Station 2
Versatile Intelligent Terminal
Suprema X-Station 2 is a versatile intelligent terminal that supports different credentials, such as QR codes, Mobile Access, RFID cards and fingerprints, offering the ultimate flexibility in terms of credential options and system design. Equipped with secure boot process, Open Supervised Device Protocol (OSDP) and cameras for image logs, X-Station 2 improves security while safeguarding user data. X-Station 2 is easy to install, use and maintain with features like Power over Ethernet (PoE), intuitive GUI on 4 ” wide touchscreen, and IP65 rating.
Features
Multi-technology Terminal with Various Credential Options
X-Station 2 provides multiple credential options of QR codes, Mobile Access, RFID cards and fingerprints, offering maximum system design flexibility. Mobile Access and QR code authentication let users go cardless and carefree by using smartphones as credentials.
Comprehensive RFID Card Compatibility
X-Station 2 is compatible with most existing RFID card technology. It supports both LF (125kHz) and HF (13.56MHz) RFID as well as various card types including EM, MIFARE, MIFARE Plus, iCLASS, DESFire and FeliCa.
Enhanced Security and Data Protection
X-Station 2 guards against malware attacks and data breaches with secure boot process. By supporting OSDP (Open Supervised Device Protocol), the terminal encrypts bi-directional RS-485 communication. Using the built-in camera, X-Station 2 can also capture image logs for added security.
Designed for easy deployment and management
X-Station 2 enables convenient installation with less wiring by supporting Power over Ethernet (PoE) as well as various interfaces like Wiegand, RS-485, TTL input and Relay. IP65 rated, X-Station 2 is dust-tight, water resistant and easy to maintain.
Leading-edge Fingerprint Recognition
X-Station 2 boasts the "Best-in-class" performance (5,000 template match/ sec) and the highest level of security in terms of Powerful CPU, MINEX-Certified Algorithm, Fake/Live Finger Detection, Fingerprint Template and Packet Data Encryption.
* The fingerprint module is only available in models of XS2-ODPB and XS2-OAPB.
Improved Usability of Intuitive UI on Touchscreen
X-Station 2 allows quick and easy access to features on its 4 ” wide capacitive touchscreen. You can also customize the display for branding purposes.
Expanded Capacity for More Users and Security Logs
X-Station 2’s large memory can sufficiently meet enterprise needs. Its 16 GB Flash and 1 GB RAM can handle up to 500,000 users, 5 million text logs and 50,000 image logs.
USERS: 500,000
IMAGE LOGS: 50,000
TEXT LOGS: 5,000,000

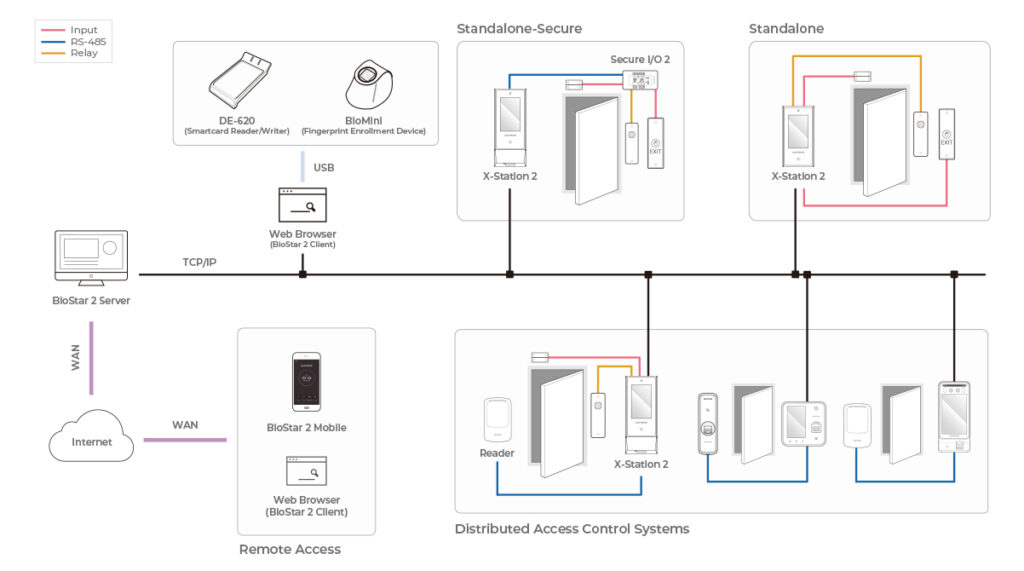

Configuration
Specification
| RFID | XS2-DPB & XS2-QDPB: 125 kHz EM & 13,56 MHz MiFare, MiFare Plus, DESDire EV1/EV2, FeliCa |
|---|---|
| Mobile Card | NFC, BLE |
| QR and barcode | XS2-DPB & XS2-APB: N/A |
| Biometrics | XS2-ODPB and XS2-OAPB: Fingerprint |
| CPU | 1.5 GHz Quad Core |
| Memory | 16 GB Flash + 1 GB RAM |
| Max. Users | 500.000 |
| Max. Logs | Text 5.000.000 / Image 50.000 |
| LCD | 4'' IPS color LCD / 480 x 800 pixels |
| Camera | CMOS 2M pixels / 1600 x 1200 |
| Ethernet | Supported (10/100 Mbps, auto MDI/MDI-X) |
| RS-485 | 1ch Host or Slave (selectable) |
| Wiegand | 1ch Input or Output (selectable) |
| TTL | 2 ch Inputs |
| Relay | 1 |
| PoE | Supported (IEEE 802.3af compliant) |
| IP Protection | IP65 |
| Tamper | Supported |
| Power | DC 12V (Max. 0.8 A) o DC 24 V (Max 0.45 A) |
| Dimensions (mm) | XS2-DPB & XS2-APB: 82 x 159 x 25.9 |
| Operating temperature | -20ºC up to 50ºC |
| Certificates | KC, CE, FCC (Compliance: RoHS, REACH, WEEE) |
1)DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with X-Station 2.
2)RF read range will vary depending on installation environment.
3)Supports QR/Barcodes composed of up to 32 ASCII code strings.
4)Requires a separate license.
5)The number of users registered without having any credential data.
