XPass S2
xpasss2
XPass S2 effortlessly combines key features of a traditional access control system.It has an ultra slim look and is a cornerstone in Suprema’s distributed IP access control system. The XPass S2 is designed to withstand a wider range of temperature and can read multiple smartcard technologies making it an ideal product for harsh weather environments.
Features
Multi-Smartcard Reader
The XPass S2 has an innovative multi-smartcard support. This new feature gives XPass S2 the ability to read multiple formats from Mifare, DesFire, ISO14443A, ISO15693, to Felica.
Ultra Slim Body with Minimalistic Design
XPass S2’s profile is only 11.4mm thick, creating a slim aesthetic look when installed. Tailored to fit a standard US/EU/ASIA gang box, XPass S2 allows for quick and easy installations. The keypad also has a homing bump on the number five key for ease of use by the visually impaired.
IP65-rated Dust & Waterproof structure
With IP65, XPass S2 is tightly sealed against invasive moisture, dust and liquid. This protection is achieved by Suprema's protective engineering which ensures that XPass S2 remains reliable and functioning in all types of environments.
Adaptive Temperature Control
Adaptive temperature control will allow XPass S2 to operate in extreme cold temperatures as well as extreme hot environments. (Operational temperature -35°C to 65°C)

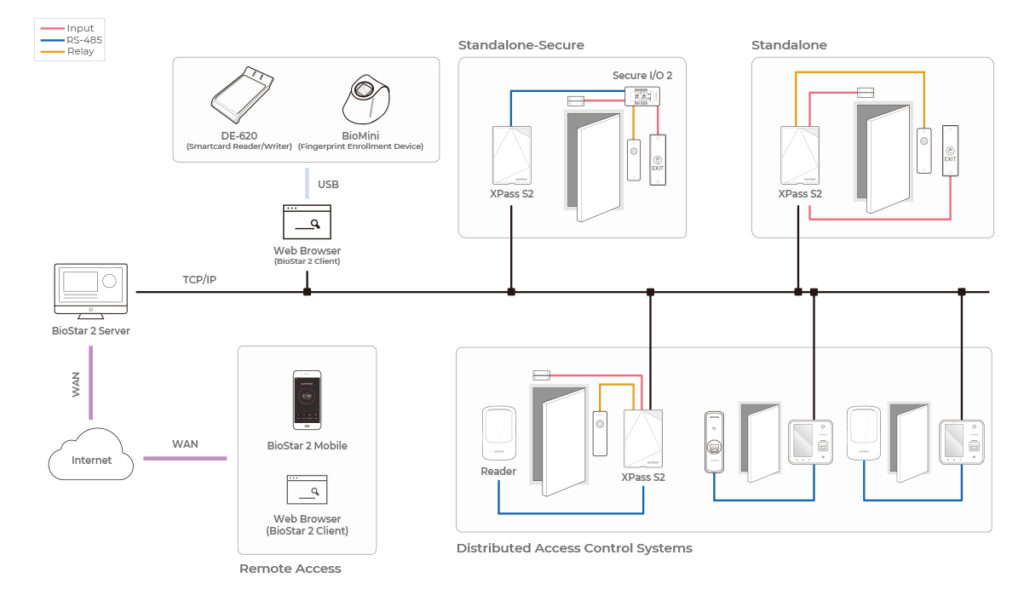

Configuration
Specification
| Main | Biometric | - |
| IP Rating | IP65 | |
| RF Option | 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1 (CSN), FeliCa | |
| Multi-Controller | Yes | |
| Capacity | Max. User (1:1) | 50,000 |
| Max. User (1:N) | 50,000 | |
| Max. Template (1:1) | - | |
| Max. Template (1:N) | - | |
| Max. Text Log | 100,000 | |
| Max. Image Log | - | |
| Interface | WiFi | - |
| TCP/IP | Yes | |
| RS-485 | 1ch Host or 1ch Slave (Selectable) |
|
| RS-232 | - | |
| Wiegand | 1ch In or 1ch Out (Selectable) |
|
| Input | 2 Inputs | |
| Relay | 1 Relay | |
| USB | - | |
| SD Card Slot | - | |
| Hardware | CPU | 533MHz DSP |
| Memory | 16MB RAM + 16MB Flash | |
| LCD | - | |
| LED Indicator | Multi-Color | |
| Sound | Multi-tone Buzzer | |
| Operating Temp. | -35° to 65°C | |
| Tamper | Yes | |
| Power | 12VDC | |
| PoE | - | |
| Dimensions | 80 x 120 x 11.4 (WxHxD mm) | |
| Certificates | CE, FCC, KC, RoHS, REACH | |
| Compatibility | BioStar 1.x | Yes |
| BioStar 2 | Yes |
